Referencias sistemas On-grid
Raach Solar instala sistemas fotovoltaicos on-grid en una amplia variedad de configuraciones.
Aquí encontrará algunas referencias de proyectos que hemos implementado.
Sistemas fotovoltaicos micro
on ground grid connectetd with two micro inverters directly connected to the grid for self consumption to reduce electricty bill Installation
Power rating: 900 Wp
Installation: on ground
Customer: Privat house owner
Dettingen, Germany
grid connected with two micro inverters directly connected to the grid for self consumption to reduce electricty bill
Power rating: 900 WP
Installation: facade
Customer: Privat house owner
Dettingen, Germany
grid connected with two micro inverters direktly connected with the grid for self
Power rating: 650 Wp
Installation: parallel to the roof
Customer: Privat house owner
Lörrach, Germany
Sistemas fotovoltacios residenciales
grid connected string inverter connected to the grid for self consumption. Overproduction is fed into the public grid.
Power rating: 6,5kWp
Installation: solar modules installed on corrugated steel roof at 10° tilt angle
Customer: house owner
Burgrieden, Germany
grid connected string inverter connected to the grid for self consumption. Overproduction is fed into the grid Installation.
Power rating: 11,2 kWp
Installation: parallel to the roof
Customer: private house owner
Memmingen, Germany
grid connected string inverter connected to the grid for self consumption. Overproduction is fed into the grid Installation.
Power rating: 9,9 kWp
Installation: parallel to the roof
Customer: engineering office
Dietenheim, Germany

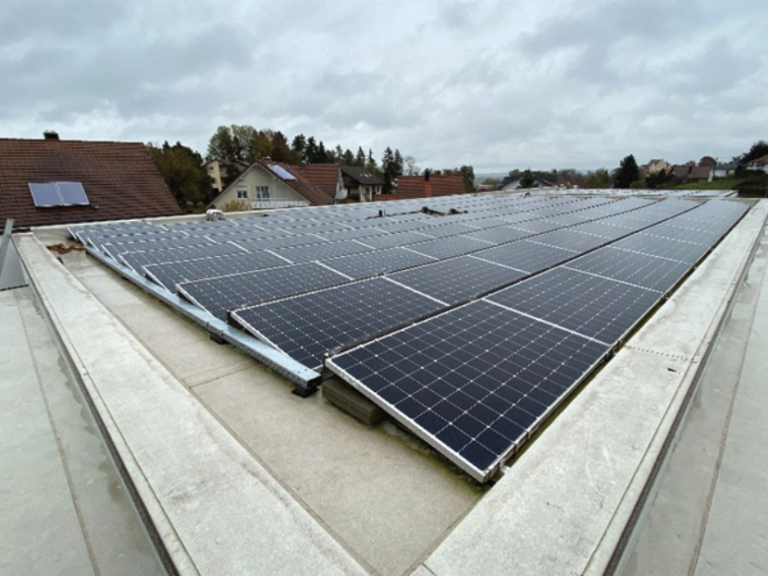

grid connected string inverter connected to the grid for self consumption and battery charging. Overproduction is fed into the grid.
Power rating: 20 kWp
Installation: flat roof at 10° tilt angle, south orientation
Customer: Privat house owner
Schelkingen, Germany
grid connected string inverter connected to the grid for self consumption. Overproduction is fed into the grid Installation.
Power rating: 9,9 kWp
Installation: flat roof at 30° tilt angle
Customer: privat house owner
Dettingen, Germany
Sistema fotovoltaico publico & commercial

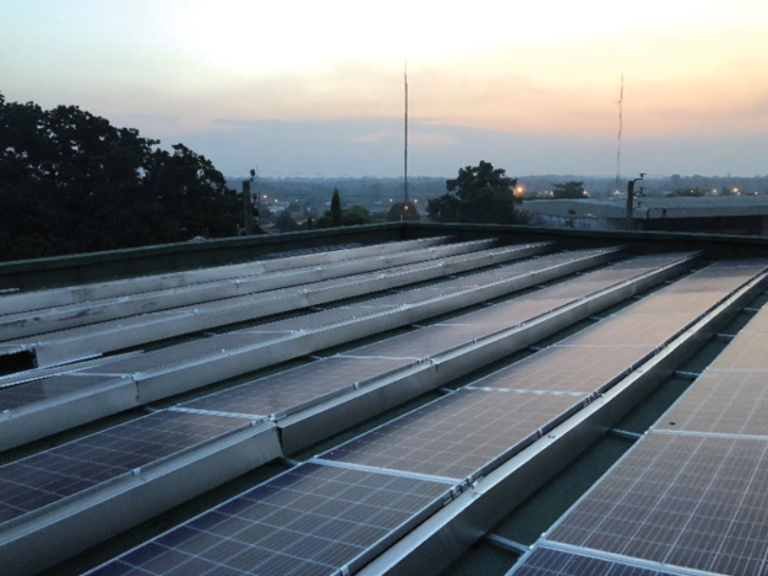

grid connected string inverters connected to the grid for self consumption. Zero feed in because of local legislation.
Power rating: 70kWp
Installation: parallel to the roof
Customer: GPHA office building
Tema, Ghana

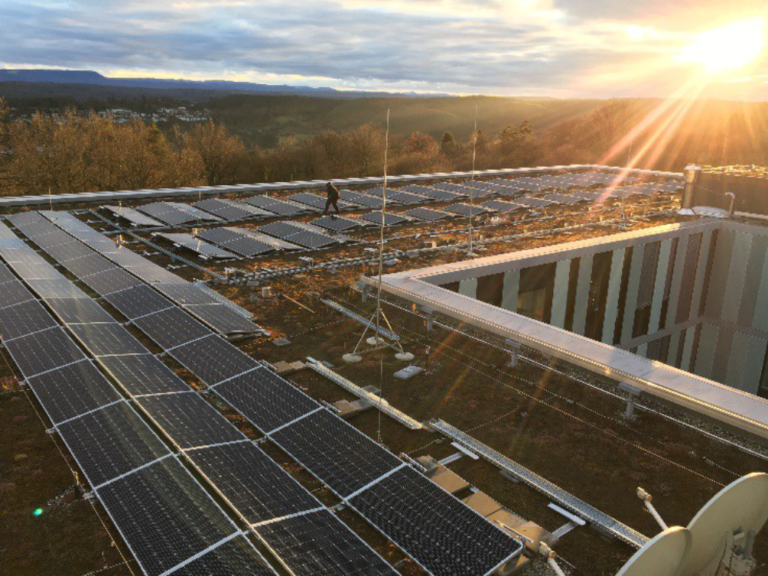

grid connected string inverters connected to the grid for self consumption. Overproduction is fed into the grid.
Power rating: 140kWp
Installation: flat roof at 10° tilt angle, east-west orientation
Customer: University Clinics
Tübingen, Germany
grid connected string inverters connected to the grid for self consumption. Overproduction is fed into the grid.
Power rating: 100kWp
Installation: flat roof at 10° tilt angle, east-west orientation
Customer: University Clinics
Tübingen, Germany
grid connected string inverters to feed electricty directly to the grid.
Power rating: 80kWp
Installation: elevated modules on a tilted industrial roof, oriented to the south by 20°
Customer: industrial company
Dettingen, Germany

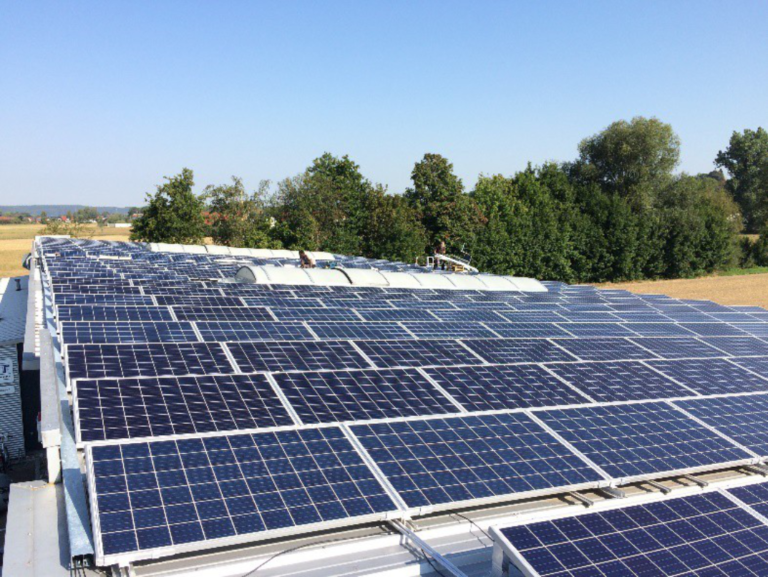

grid connected string inverters connected to the grid for self consumption. Overproduction is fed into the grid.
Power rating: 66kWp
Installation: flat roof at 10° tilt angle, south orientation
Customer: financial consultants
Erolzheim, Germany

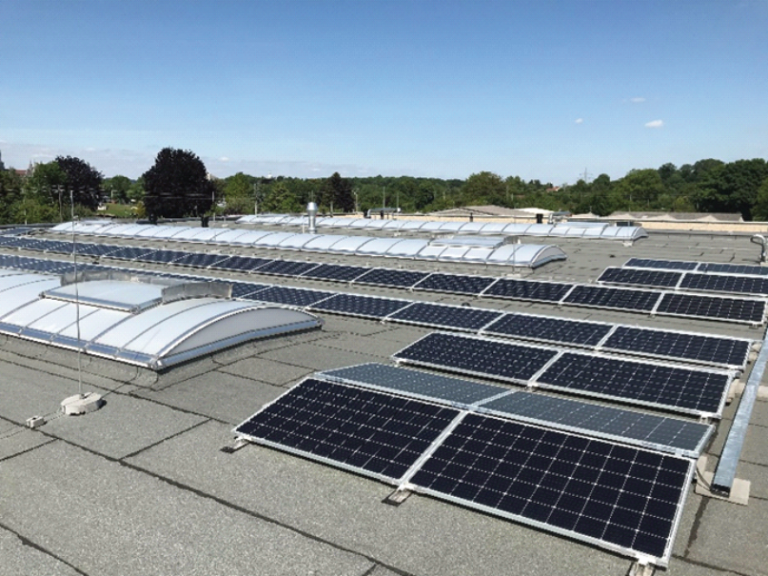

grid connected string inverters connected to the grid for self consumption. Overproduction is fed into the grid.
Power rating: 30kWp
Installation: flat roof at 10° tilt angle, east-west orientation
Customer: building yard (Bauhof) Municipality of Ulm
Ulm, Germany
grid connected string inverters connected to the grid for self consumption and battery charging. Zero feed in because of local legislation.
Power rating: 30kWp
Installation: flat roof at 10° tilt angle
Customer: bank SGBCI
Katiola, Ivory Coast
grid connected string inverters connected to the grid for self consumption. Zero feed in because of local legislation.
Power rating: 70 kWp
Installation: parallel of the roof
Customer: industrial laundry
Abidjan, Ivory Coast

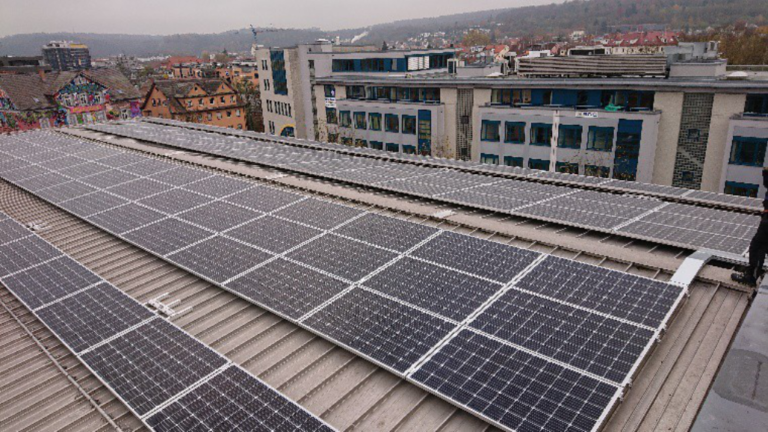

grid connected string inverters connected to the grid for self consumption. Overproduction is fed into the grid.
Power rating: 46 kWp
Installation: parallel to the roof, east-west orientation
Customer: Accident Prevention&Insurance Association (BG)
Tübingen, Germany
grid connected string inverters connected to the grid for self consumption and battery charging. Zero feed in because of local legislation.
Power rating: 30 kWp
Installation: flat roof at 10° tilt angle
Customer: bank SGBCI
Katiola, Ivory Coast

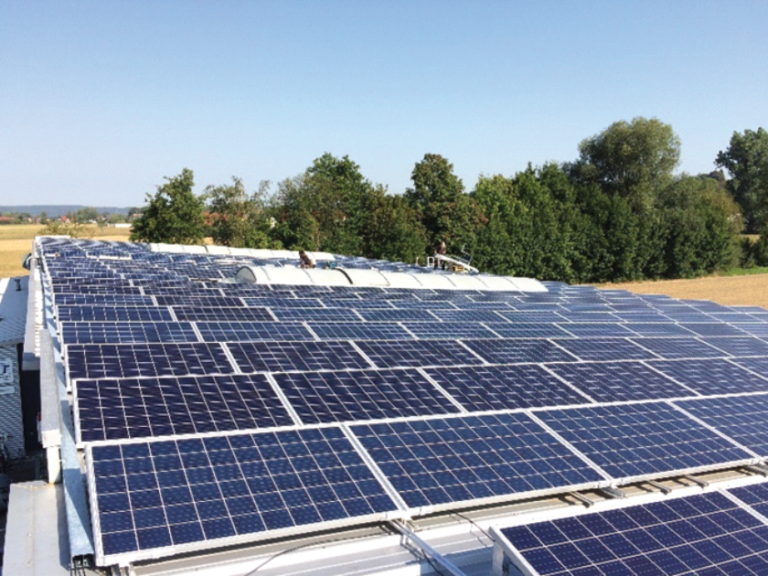

grid connected string inverters connected to the grid for self consumption. Overproduction is fed into the grid.
Power rating: 66 kWp
Installation: flat roof at 10° tilt angle, south orientation
Customer: financial consultants
Erolzheim, Germany
grid connected string inverters connected to the grid for self consumption. Overproduction is fed into the grid.
Power rating: 30 kWp
Installation: flat roof at 10° tiltangle, east-west orientation
Customer: building yard, Municipality of Ulm
Ulm, Germany

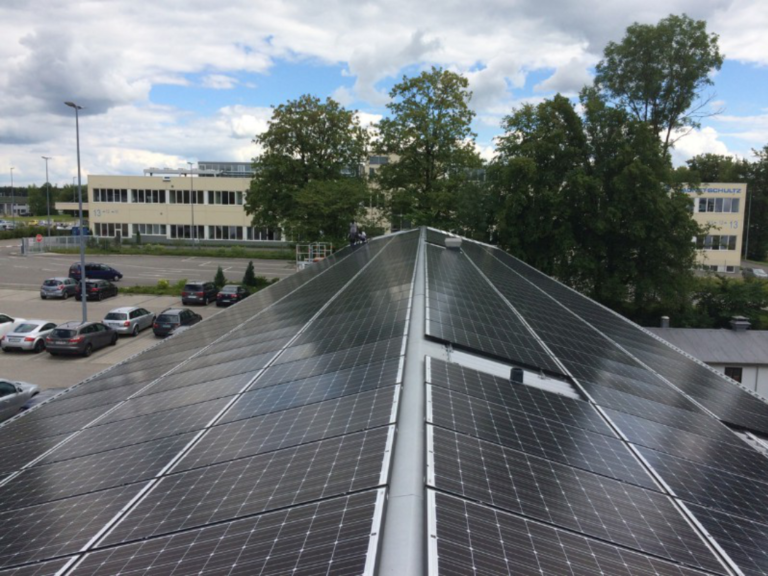

grid connected string inverters connected to the grid for self consumption. Overproduction is fed into the grid.
Power rating: 70 kWp
Installation: parallel of the roof, south-north orientation
Customer: Industrial printing plant
Memmingerberg, Germany
grid connected string inverters connected to the grid for self consumption. Overproduction is fed into the grid.
Power rating: 140 kWp
Installation: flat roof at 10° tilt angle, east-west orientation
Customer: University Clinics
Tübingen, Germany
grid connected string inverters to feed electricty directly to the grid.
Power rating: 80 kWp
Installation: elevated moduls on a tilted industrial roof,oriented to the south by 20°
Customer: Industrial company
Dettingen, Germany
Fotovoltaica industrial
grid connected string inverters connected to the grid for self consumption. Overproduction is fed into the grid.
Power rating: 380kWp
Installation: parallel to the roof on several buildings, 30°angle
Customer: Municipality of Karlsruhe
Karlsruhe, Germany
grid connected string inverters connected to the grid for self consumption. Zero feed in because of local legislation. https://www.youtube.com/watch?v=01VOXKHm6s4
Power rating: 1,2 MWp
Installation: suspendend on flat roof at 25° tilt angle
Customer: Saudi Electric Company (SEC) headquarters
Riyadh, Kingdom of Saudi Arabia
grid connected string inverters connected to the grid for self consumption. Zero feed in because of local legislation.
Power rating: 300 KwP
Installation: on flat roof at 10° tilt angle
Customer: designer clothing factory
Dhaka, Bangladesh
Plantas de generación fotovoltaica
Consulting, bankable feasibility study, technical and financial risk mitigation, full technical layout and energy production simulations
Power rating: 20 MWp
Installation: on ground at 10° tilt agle
Customer: private investor
Siguiri, Republic of Guinea
Estaciones de carga
three charging points for electric vehicles with RFID access control
Power rating: 3x 11 kW
Installation: point Installation on parking area
Customer: private investor
Erolzheim, Germany
Sistemas fotovoltaicos ingrados en edificaciones
grid connected solar module inverters to feed electricty directly to the grid for own consumption.
Power rating: 9 kWp
Installation: glass-glass solar modules integrated into office building facade
Customer: solar company EnergieR
Dakar, Senegal
grid connected string inverts to feed electrictly to the grid
Power rating: 9,1 kWp
Installation: complete roof integrated photovoltaic modules
Customer: private house owner
Schondorf am Ammersee, Germany
Cubiertas solares
grid connected string inverter to charge batteries for an AC mini grid.
Power rating: 20 kWp
Installation: solar modules installed on a steel car port with concrete foundations.
Customer: UNICEF
Banjul, Gambia
grid connected string inverter to charge batteries for an AC mini grid.
Power rating: 15 kWp
Installation: solar modules installed on an aluminium carport with micro pile concrete fundation
Customer: NGO
Freetown, Sierra Leone
grid connected string inverter connected to the grid to charge electric vehicles. Overproduction is fed into the grid
Power rating: 23 kWp
Installation: grid connected string inverter connected to the grid to charge electric vehicles. Overproduction is fed into the grid
Customer: Airport authority
Memmingen, Germany
