Referencia de Sistemas no conectados a la red

Raach Solar instala sistemas fotovoltaicos off-grid en una amplia variedad de configuraciones.
Aquí usted encontrará algunas referencias de proyectos que hemos implementado.

Sistemas de almacenamiento en Batería (Sistema Solar Doméstico AC)

grid parallel solar system with grid tie inverter, battery and DC/AC inverter-charger.
Power rating: 9,9 kWp
Battery capacity: 26 kWh
Installation: solar modules installed on flat roof with 15° angle
Customer: commercial company
Kassel, Germany

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
off grid solar system with charge controller, battery and DC/AC inverter
Power rating: 0,5 kWp
Battery capacity: 2,4 kWh
Installation: solar modules installed parallel to the roof
Customer: private customer
Freetown, Sierra Leone

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
grid parallel solar system with grid tie inverter, TESLA Powerwall lithium battery.
Power rating: 20 kWp
Battery capacity: 26 kWh
Installation: solar modules installed on flat roof with 10° angle
Customer: private customer
Ulm, Germany

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
off grid solar system with grid tie inverter, battery and DC/AC inverter-charger
Power rating: 15 kWp
Battery capacity: 50 kWh
Installation: solar modules installed on the flat roof
Customer: supermarket
Freetown, Sierra Leone

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
off grid solar system with grid tie inverter, battery and DC/AC inverter-charger
Power rating: 15 kWp
Battery capacity: 10 kWh
Installation: solar modules installed parallel to the roof
Customer: school and orphanage
Dire Dawa, Ethiopia

Sistemas fotovoltaico de bombeo

independent submersible pumping system.
Power rating: over 2000 x systems in the range between 4 kWp to 20 kWp
Pump: over 2000 x pumps 5m to 100m head, 8m³ to 30m³ /h
Installation: solar modules installed on ground to supply pump for farmland irrigation.
Customer: gouvernment authority
Dhaka, Bangladesh

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
independent submersible pumping system.
Power rating: over 5000 x systems in the range between 2 kWp to 5 kWp
Pump: over 5000 x pumps 5m to 100m head, 1,2m³ to 8m³ /h
Installation: solar modules installed on ground to supply pump for farmland irrigation, partially with water tanks.
Customer: private solar company
Lagos, Nigeria

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
independent submersible pumping system.
Power rating: 0,6 kWp
Pump: 10m head, 5m³/h
Installation: pump installed in horizontal position in a river for children playground.
Customer: Stadt Heidenheim
Heidenheim, Germany

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
independent submersible pumping system.
Power rating: 0,6 kWp
Pump: 40m head, 2,5m³/h
Installation: CU200 switch box connected to level sensor which stops pump when water tank is full.
Customer: Farmer
Ouagadougou, Burkina Faso

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
independent submersible pumping system.
Power rating: 2 kWp
Pump: 5m head, 8m³/h
Installation: CU200 switch box with level sensor to drain rain water outof waste disposal site.
Customer: industrial customer
Munich, Germany

Sistemas de energía para aldea – Minired AC (30kWp a xMWp)

grid connected string inverter to charge batteries for an AC mini grid in a diesel hybrid system
Power rating: 100 kWp
Battery capacity: 466 kWh, lithium
Installation: solar modules installed on a on ground carport for car parking
Customer: New Delhi Electricity Company
New Delhi, India

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
grid connected string inverter to charge batteries for an AC mini grid.
Power rating: 100 kWp
Battery capacity: 466 kWh (lithium)
Installation: solar modules installed on a steel car port with concrete foundations.
Customer: German development organization, Delhi Electricity Company
New Delhi, India

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
grid connected string inverter to charge batteries for an AC mini grid.
Power rating: 100 kWp
Battery capacity: 114 kWh
Installation: solar modules installed in parallel to several roofs
Customer: Non Governmental Organization (NGO), primary school
Freetown, Sierra Leone

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
grid connected string inverter to charge batteries for an AC mini grid.
Power rating: 100 kWp
Battery capacity: 200 kWh

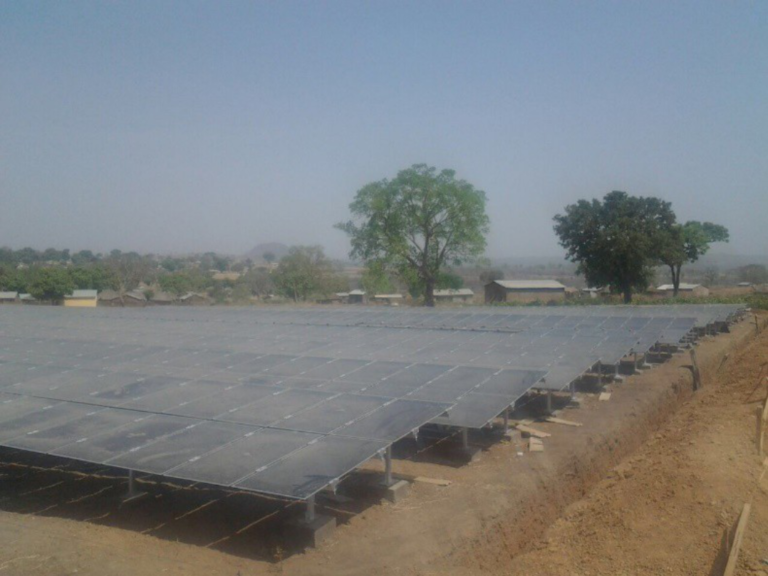

Installation: solar modules installed on ground
Customer: public customer, municipality
Yaoundé, Cameroun

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
grid connected string inverters, inverter chargers and batteries for an AC mini grid, 60Hz.
Power rating: 30 kWp
Battery capacity: 115 kWh
Installation: solar modules installed parallel to the roof
Customer: Non Governmental Organization (NGO), orphanage
Tegucigalpa, Honduras

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
grid connected string inverter to charge batteries for an AC mini grid.
Power rating: 12 kWp
Battery capacity: 50 kWh
Installation: solar modules installed on a container with concrete foundations.
Customer: Non Governmental Organization (NGO)
Ouagadougou, Burkina Faso

Sistemas fotovoltaicas para equipos de telecomunicación

off grid solar system with charge controller, 48VDC battery and DC/AC inverter
Power rating: 31 x sites each 7,2 kWp = 223,2 kWp
Battery capacity: 31 x sites each 50 kWh = 1,55 MWh
Installation: solar modules installed on ground to power telecom equipment
Customer: private satellite company
Ouagadougou, Burkina Faso

Sistemas de protección catódica contra corroción

off grid solar system with charge controller, 48VDC battery and DC/AC inverter
Power rating: 10 x sites each 14 kWp = 140 kWp
Installation: solar modules installed on ground to power cathodic protection controller for oil pipelines.
Customer: private oil company
Bagdad, Iraq

Sistemas solares para iluminación pública

solar powered LED streetlight charge controller and automatic on/off function.
Power rating: 160 x units 80 Wp, 160 x 45W LED
Installation: solar modules installed on 11m steel poles with charge controller and batteries.
Customer: construction company
Freetown, Sierra Leone

Sistemas de refrigeración y congelación de cadena de frío

off grid solar system with charge controller, battery and DC/AC inverter-charger.
Power rating: 6,6 kWp
Battery capacity: 109 kWh
Storage capacity: 30 m³
Installation: solar modules installed on an open building with concrete foundations.
Customer: German development organization
Storage capacity: 30 m³
Dakar, Senegal

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
PV hybrid system made out of grid connected string inverters, inverter chargers and batteries including 10kVA diesel generator.
Power rating: 19 kWp
Battery capacity: 237 kWh
Storage capacity: 120 m³
Installation: solar modules installed on a steel car port with concrete foundations.
Customer: Ministry of Agriculture, German development organization
Storage capacity: 120 m³
Ouagadougou, Burkina Faso

Sistema solare doméstico

DC battery charging with auxiliary battery inverter for single phase 230VAC output
Power rating: 15 x 750 Wp
Installation: solar modules installed on a multi-storey building roof. Battery box with electronics on ground floor to power staircase and outdoor lighting.
Customer: construction company
Banjul, Gambia

Planta de generación fotovoltaica híbrida (>5 MWp)

Photovoltaic Wind Battery Diesel generator hybrid independent photovoltaic power plant.
Power rating: 30 MWp / 27 MVA
Battery capacity: 23 MWh
Installation: On ground solar power plant as independent electric grid.
Customer: SPC
Port Suakin, Sudan

Warning: Undefined array key 1 in /www/htdocs/w0193a02/raachsolar.medienhaus-krapp.de/wp-content/plugins/ele-custom-skin/skins/skin-custom.php on line 224
Photovoltaic Wind Battery Diesel generator hybrid independent photovoltaic power plant.
Power rating: 7,7 MWp / 7,5 MVA
Battery capacity: 6 MWh
Installation: On ground solar power plant as independent electric grid.
Customer: Port Sudan Harbour Authority
Live Stock Port, Sudan
